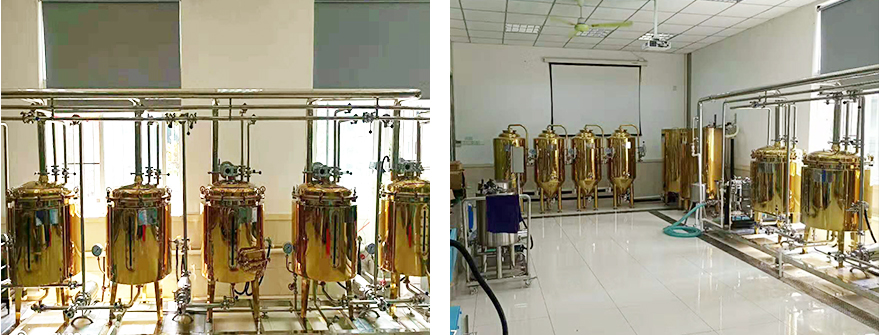

The beer teaching experimental line of Shanghai Food Science and Technology School, ZH-100L copper five-ware experimental equipment, high-quality projects, and the help of the emperor

The ZH series of school beer experimental equipment mainly includes the saccharification part and the fermentation part. The two are connected through a comprehensive pipeline. The system configuration is comprehensive, the equipment is advanced, the operation is flexible, safe and stable, and it can meet the beer production and teaching requirements of colleges and universities. Design according to user needs. The saccharification part is composed of a gelatinization pot, a saccharification pot, a filter tank, a boiling pot, a swirling sink, and a heat exchanger, and each part is connected through a pipeline. The gelatinization pot and the saccharification pot are connected with a raw material input pipeline; the fermentation part is composed of It consists of 6-8 fermentation tanks, and the washing and sterilization pipelines, material pipelines, refrigerant return pipelines and CO2 pipelines are connected between the fermentation tanks.

The beer production equipment also has a complete CIP cleaning and sterilization system. There are no dead corners in the equipment and pipeline layout. The equipment is well-processed and the welding accuracy reaches sanitary standards. The interior uses multi-mirror polishing and the exterior uses stainless steel polished matte treatment, which is beautiful and practical; The road adopts sanitary stainless steel pipelines, which are welded on one side and formed on both sides. It can not only help develop new varieties of test beer, test new beer raw materials, and research new technology, but also meet the usual teaching requirements.

The control system adopts programmable controller PLC, industrial control and other automatic control elements, which has the characteristics of convenient centralized management, discrete control, strong anti-interference, strong reliability, and can be connected with various PLCs and remote computers.
