Saccharification power is one of the main factors that determine beer output, and the combination of saccharification equipment is related to the production efficiency and investment scale of the saccharification system

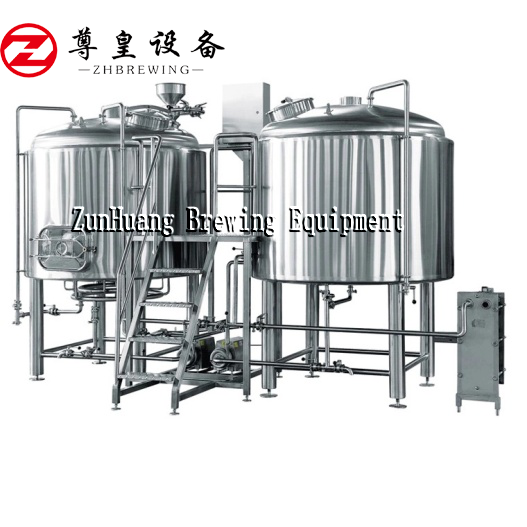

Two device combination (American equipment)
One boiling precipitation pot (with heating), one saccharification filter tank (with heating):
One saccharification, boiling, rotary sinking pot (with heating), one filter tank (without heating)
This combination form can saccharify about two batches a day. This equipment can be used for multiple purposes in one pot. High equipment utilization. The equipment investment cost is low. Low production efficiency.
Features:
1) Only suction filtration can be used for wort filtration. Because the operation and control of the pump is not particularly easy, the effect will be different for the filtration of brewing different styles of beer. For example, when brewing wheat beer, almost half of the wheat malt is used, so the viscosity is relatively large and the filtration is slow. Once the pump speed is not well controlled, it will cause a vacuum state, and the lees layer will be overly compacted, which will make filtration more difficult and even cause the sieve plate to deform.
2). Because it will be carried out in the saccharification pot during the swirling precipitation, and the built-in agitator, the existence of the agitator will greatly reduce the effect of the swirling.
3) The wort needs to be prepared in advance when washing the spent grains, and prepare other feasible containers to hold the spent grains water, which is best for the effect of heat preservation. Hard work is more.
(If you like this equipment, you can make a modification. The filter tank is higher than the saccharification pot, forming a high level difference, which can realize natural filtration. The wort pump adopts frequency conversion control, which can adjust the flow rate. Knife speed. Now many manufacturers directly remove the liquid level in order to save costs. This is not good. It is recommended to install the liquid level and filter the drain outlet to add a drain board.)
Are you thinking about building your own craft brewing project? Do you also want to get a customized craft beer project analysis report? Welcome to contact us, we will customize a satisfactory project plan for you... (18363068887)
